The iii Console is a standalone application that gives you full operational visibility into a running iii engine. It provides a web UI to inspect functions, triggers, state, streams, traces, and logs — all in real time.
Installation
Install the console binary:
curl -fsSL https://install.iii.dev/console/main/install.sh | sh
Quick Start
Start the console while your iii engine is running:
Then open your browser to http://localhost:3113.
The console connects to a running iii engine instance. Make sure your engine is started before launching the console.
By default it expects the engine at 127.0.0.1:3111.
Workers
The Workers page lists every worker process currently connected to the engine, with live metrics (memory, CPU, event-loop lag), connection time, active invocations, and registered functions.
| Column | Description |
|---|
| Name | Worker name or short ID if unnamed |
| Runtime | Language runtime badge (node, python, rust) with SDK version |
| Isolation | Isolation context badge (libkrun, docker, k8s, …) when reported |
| IP | Worker’s remote address |
| PID | Worker process ID |
| Functions | Number of functions the worker has registered |
| Active | Number of currently in-flight invocations |
| Connected | Time since the worker connected |
Workers launched via iii worker add ./path or iii worker add <image> run inside libkrun microVMs. The libkrun launcher builds the VM boot environment and injects III_ISOLATION=libkrun at VM boot time, so you’ll see a purple LIBKRUN badge next to the runtime badge. The badge is descriptive (what the worker reports about its environment), not an attestation — a direct SDK connection can self-set III_ISOLATION=docker (or anything else) before starting. Workers that don’t set the variable show no isolation badge.

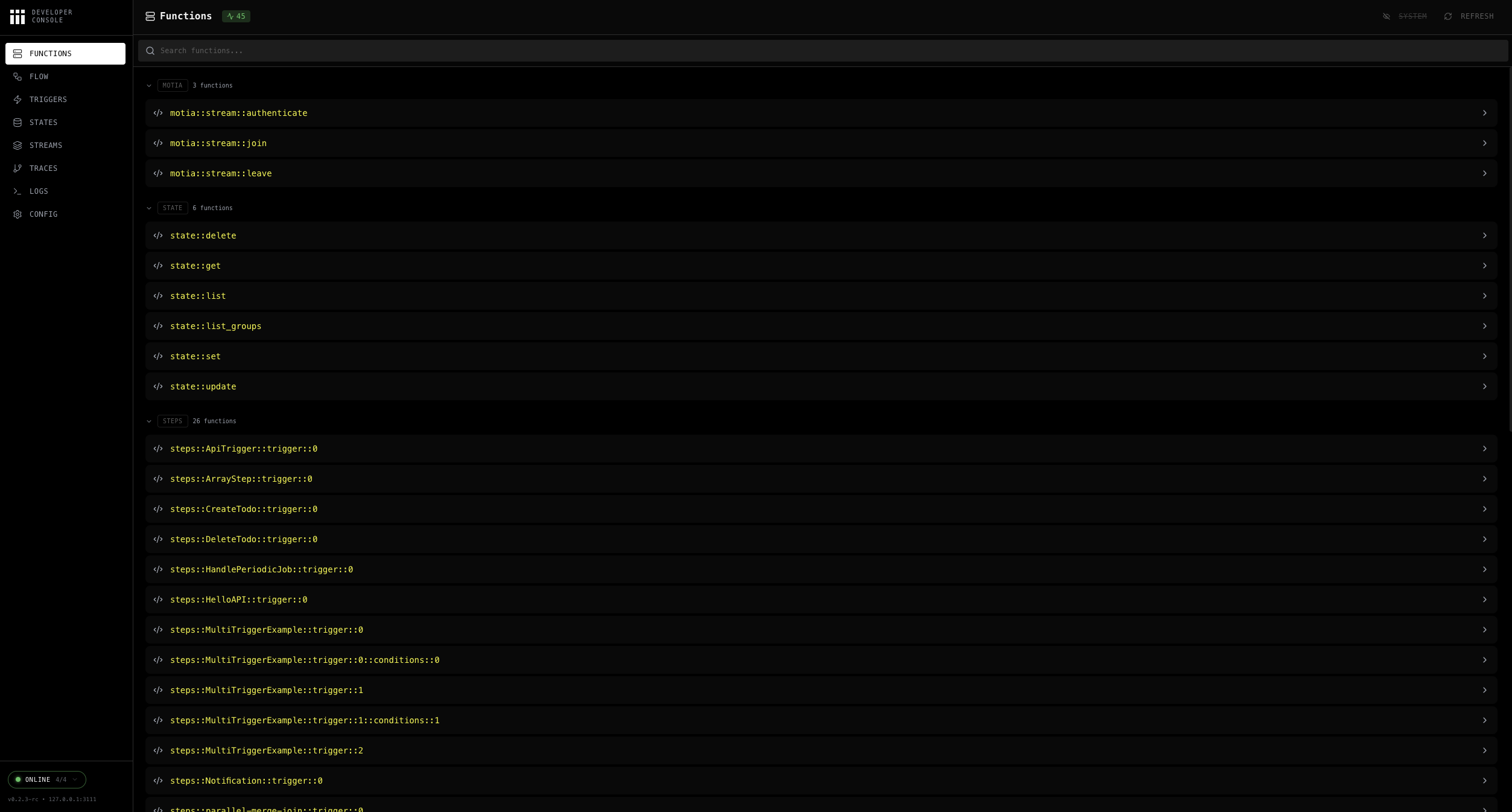

Functions
The Functions page lists every function registered with the iii engine and lets you invoke any of them directly with custom JSON input.
All registered functions are displayed with their metadata:
| Column | Description |
|---|
| Function ID | The fully qualified path (e.g. users::getProfile) |
| Triggers | Number and types of triggers attached to the function |
| Workers | Worker processes that can execute the function |
| Status | Current function status |

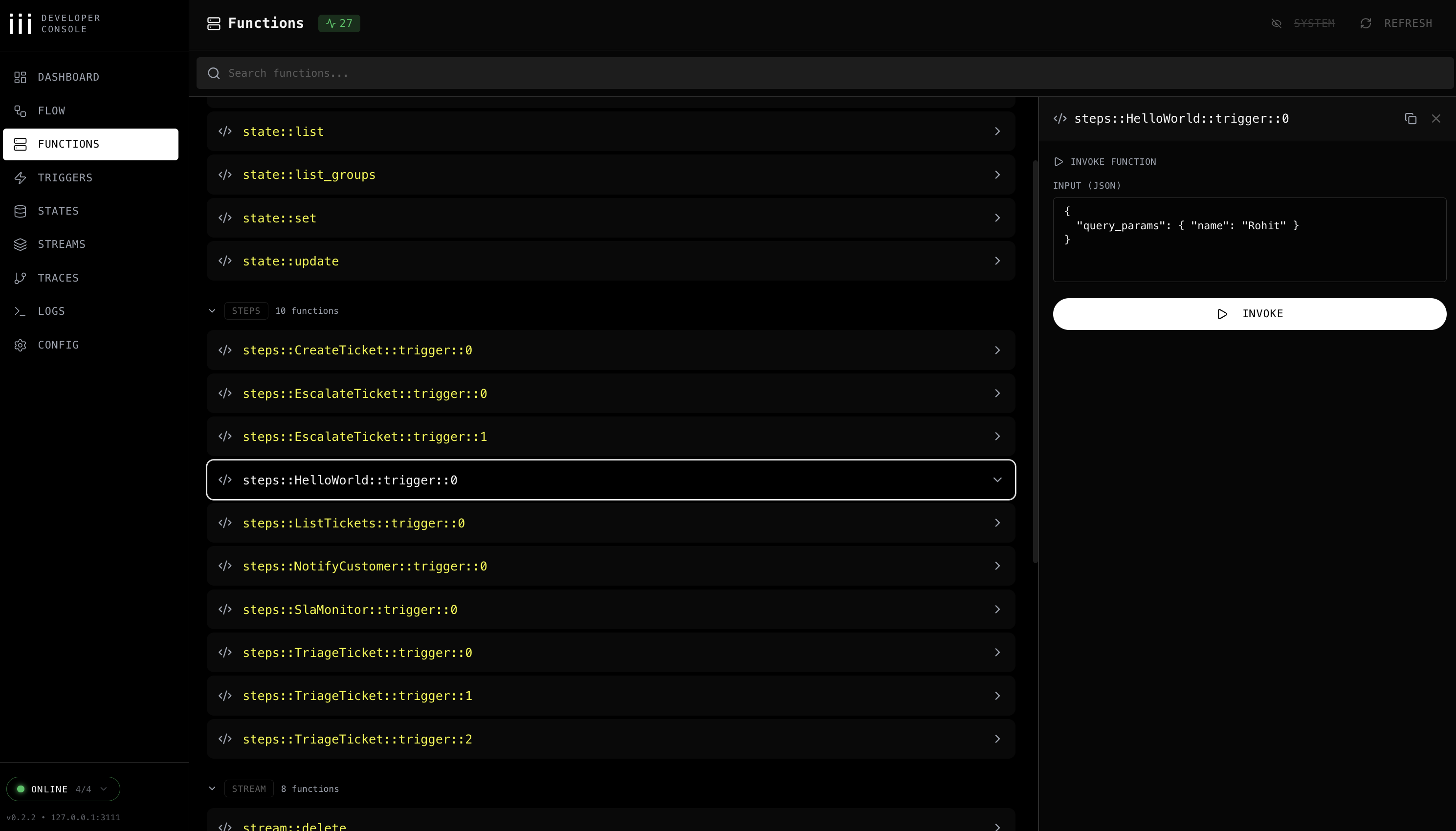

Invoking Functions
You can invoke any function directly from the console:
- Click on a function to open its detail panel
- Enter a JSON payload in the input editor
- Click Invoke
- View the result or error in real time
This is useful for:
- Testing a function during development without wiring up a trigger
- Debugging by sending specific payloads to reproduce an issue
- Ad-hoc operations like running a migration function manually
For example, to invoke a function users::getProfile:
{
"user_id": "user-123"
}
POST /_console/invoke and displays the JSON response or error inline.
Only functions that are currently registered and connected via an active worker will appear in the list. If a function is missing, check that its worker process is running.
Triggers

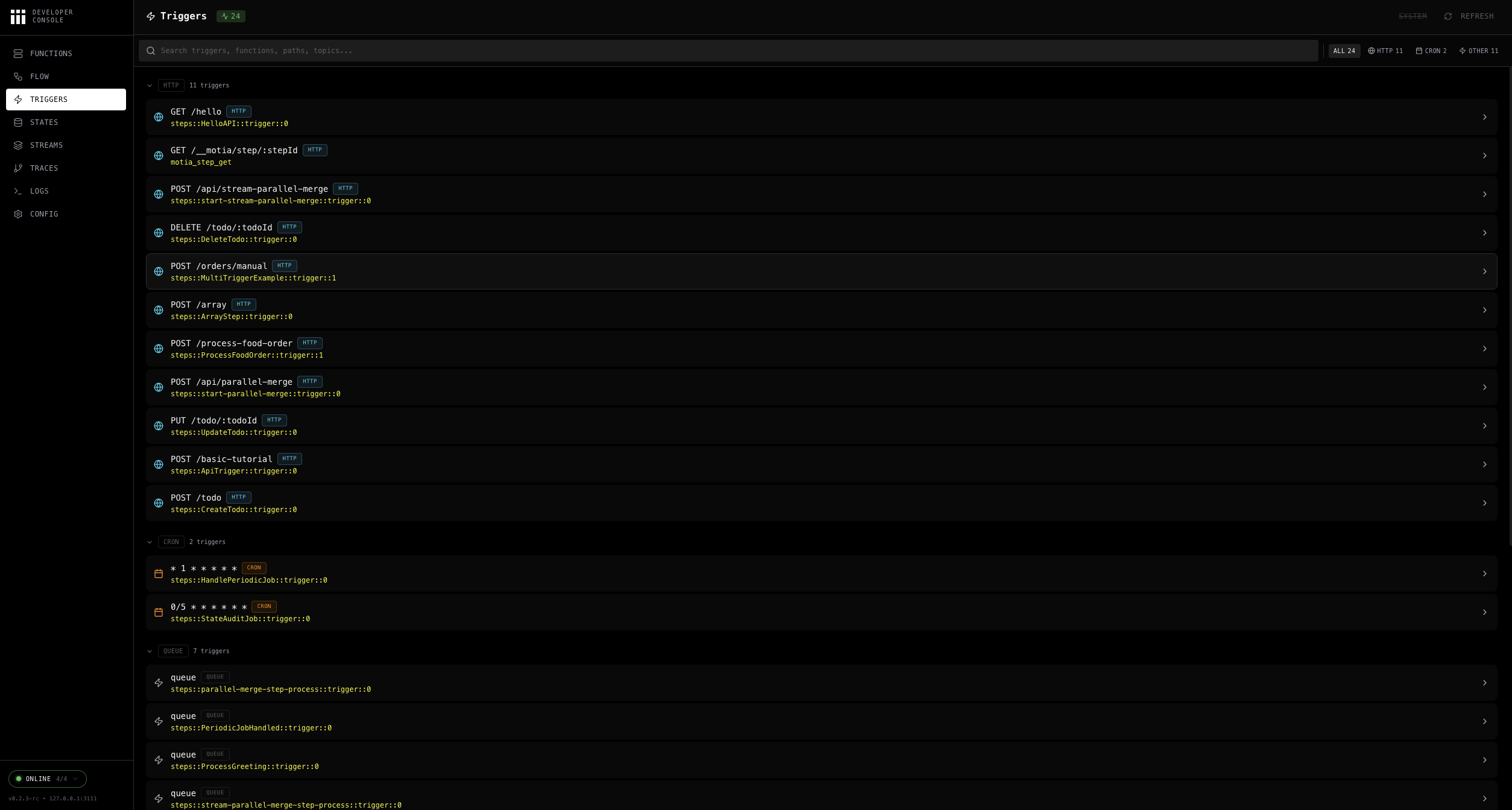

The Triggers page shows every trigger registered with the engine and provides interactive tools to test each trigger type. Triggers are grouped by kind (HTTP, CRON, QUEUE) with a total count badge and per-type filter tabs.
| Column | Description |
|---|
| Type | The trigger type: http, cron, event, state, etc. |
| Function | The function this trigger invokes |
| Path / Config | HTTP path, cron schedule, or event name |
| Status | Active, Error, or Inactive |

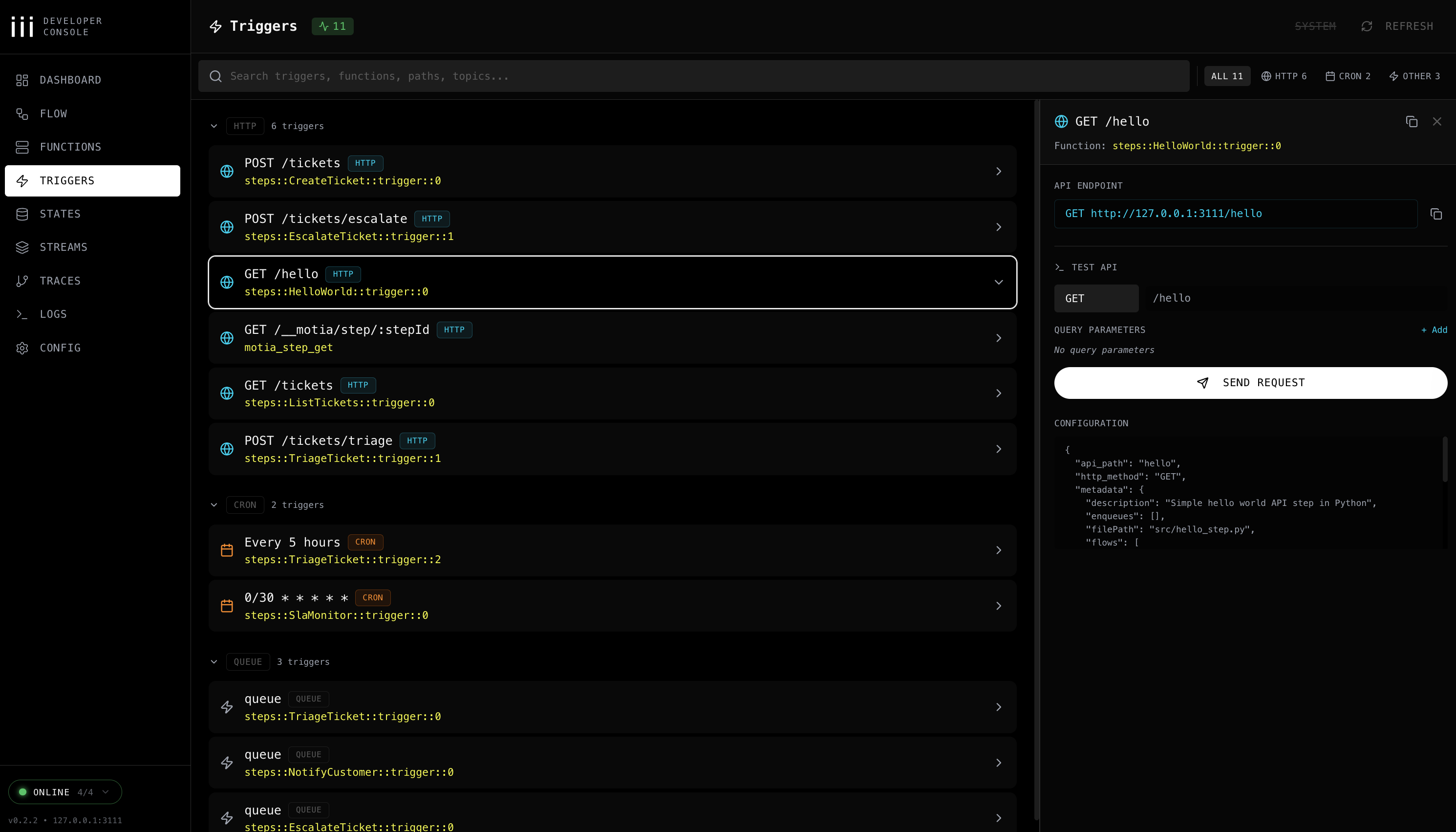

Testing HTTP Triggers
For HTTP-type triggers, the console provides a built-in request builder:
- Select the HTTP method (GET, POST, PUT, DELETE, PATCH)
- The path is pre-filled from the trigger configuration
- Add query parameters as key-value pairs
- Enter a request body (for POST/PUT/PATCH) as JSON
- Click Send to execute the request
The response is displayed inline with status code, headers, and body. For example, for a trigger registered at POST /api/users:
{
"name": "Alice",
"email": "alice@example.com"
}
Testing Cron Triggers
Cron triggers display their schedule expression (e.g. 0 */5 * * * * *). You can view the configured schedule and click Trigger Now to manually fire the cron job immediately. This is useful for testing scheduled tasks without waiting for the next scheduled run.
Testing Event Triggers
For event-type triggers, the console provides an event emitter: the event name is pre-filled, you enter a JSON payload, and click Emit to publish the event.
The available trigger types depend on which workers are loaded in your engine configuration. See Trigger Types and Workers for the full list. States

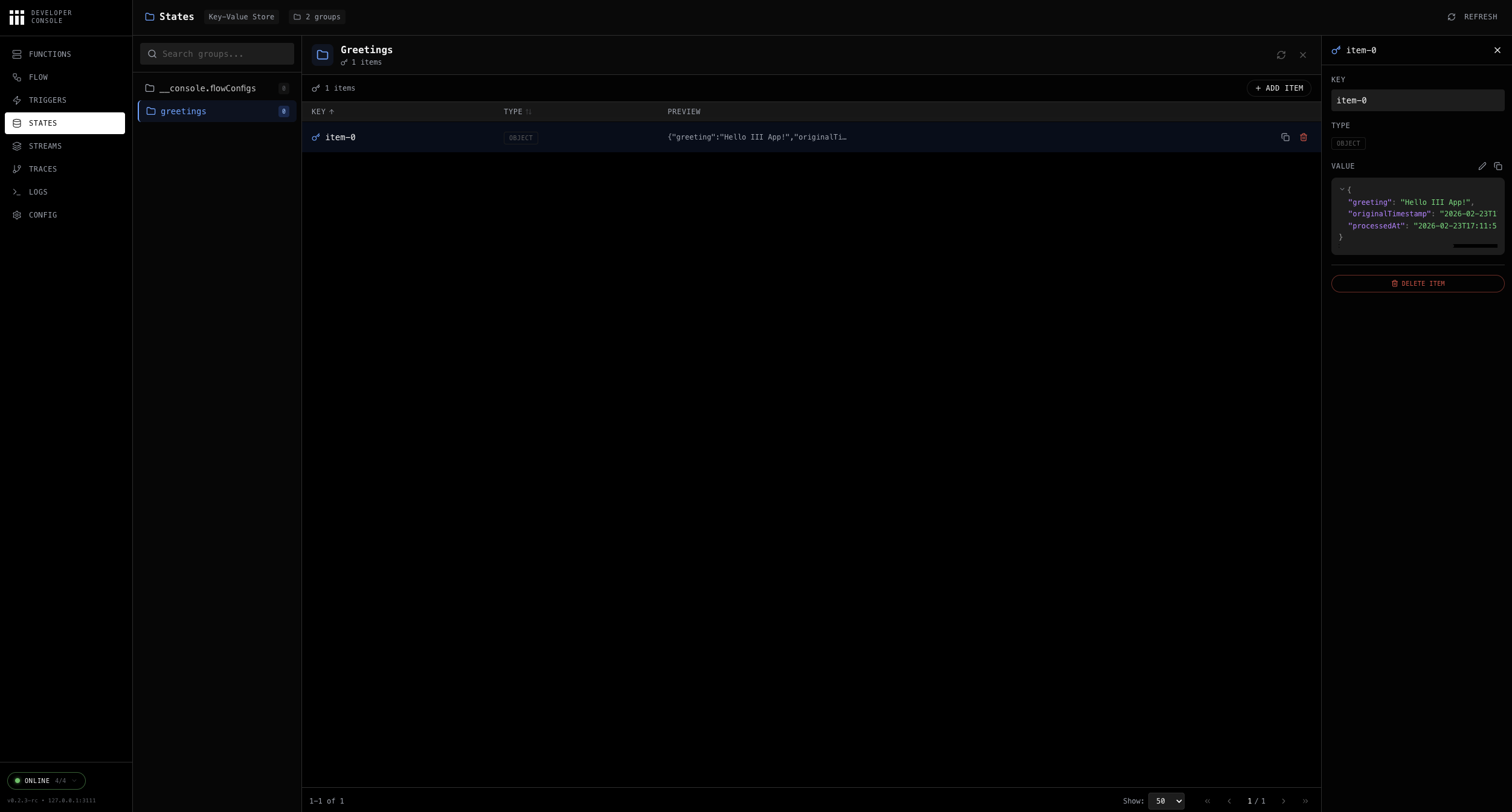

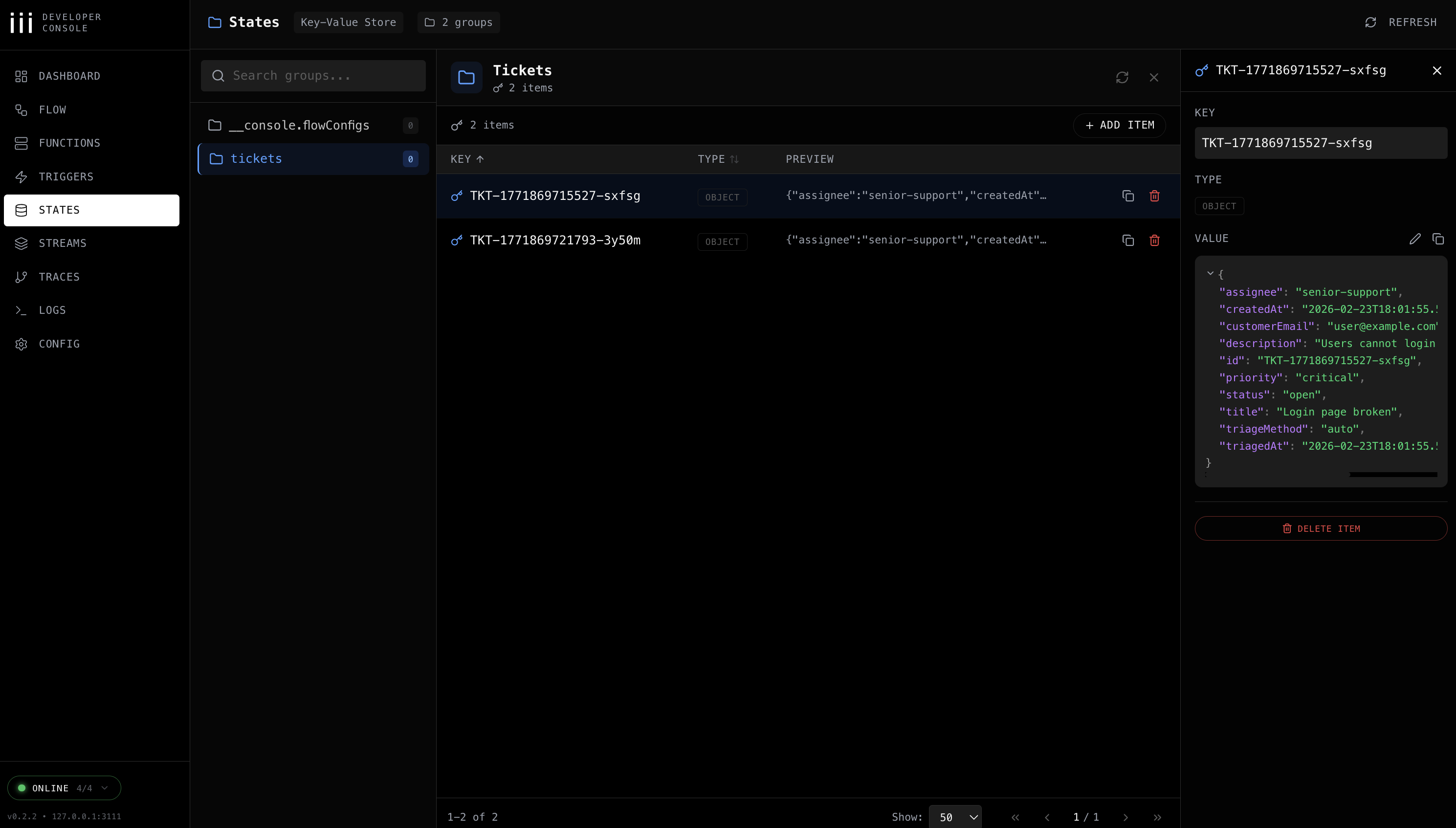

The States page provides a browser for the engine’s key-value state store. You can view, create, edit, and delete state entries organized by scope. The layout is divided into three panels: a group list on the left, an items table in the center, and a detail sidebar on the right.
The state browser displays a two-level hierarchy:
- Groups (Scopes) — top-level namespaces that organize state
- Items — individual key-value pairs within each group
Select a group from the left panel to see all its key-value items. Each item shows a Key and Value (rendered as formatted JSON). Complex values are displayed in a collapsible JSON viewer.
Managing State
- Add — Click Add Item, enter the scope, key, and JSON value, then save. Persisted via
state::set.
- Edit — Click an existing item, modify the JSON value, and save. Fires
state:updated triggers if registered.
- Delete — Click the delete icon and confirm. Fires
state:deleted triggers if registered.
State persistence depends on your engine’s State worker configuration. With in_memory storage, state is lost on engine restart. With file_based or RedisAdapter, state persists across restarts. See State Worker for configuration details. Streams

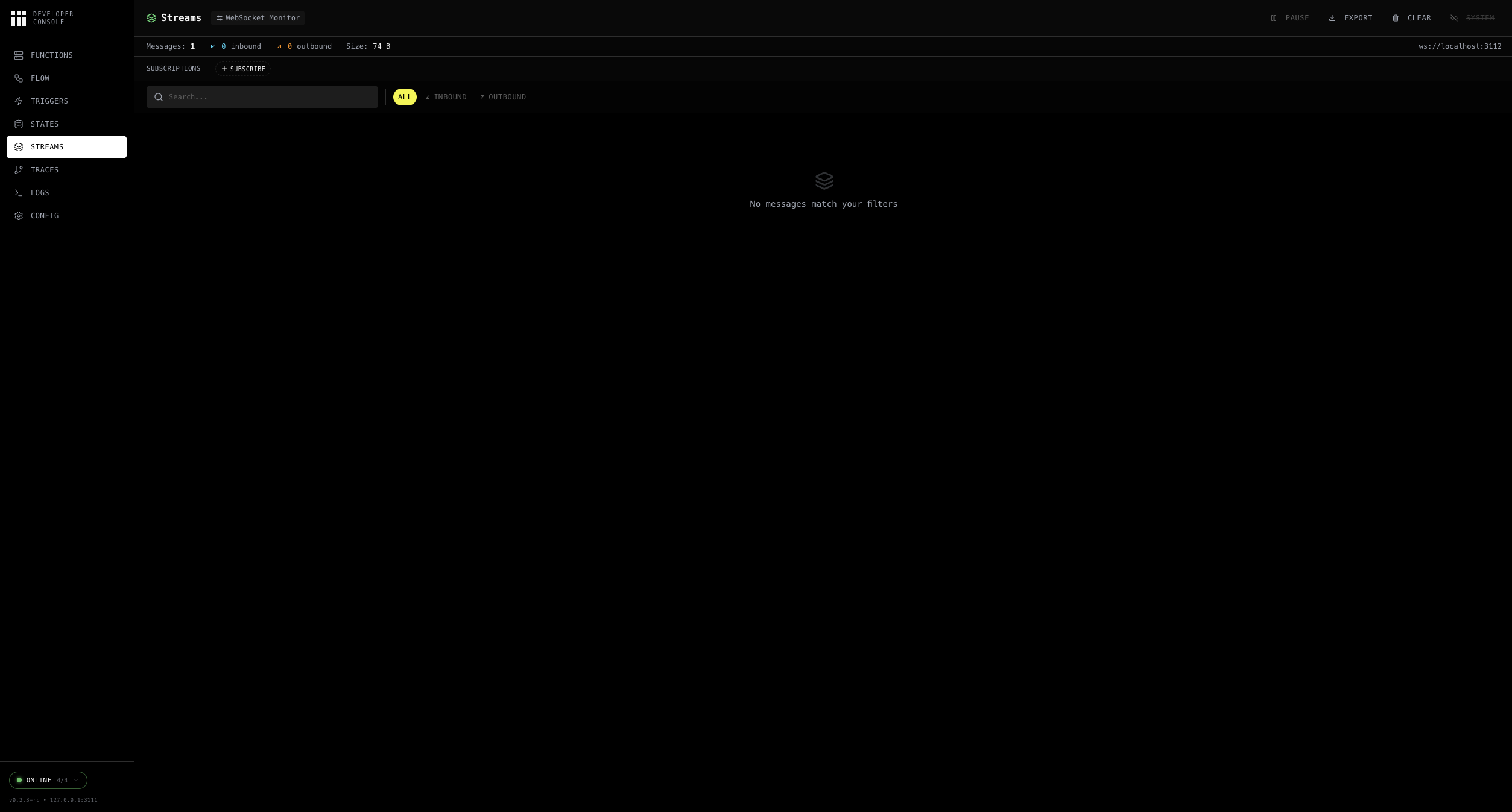

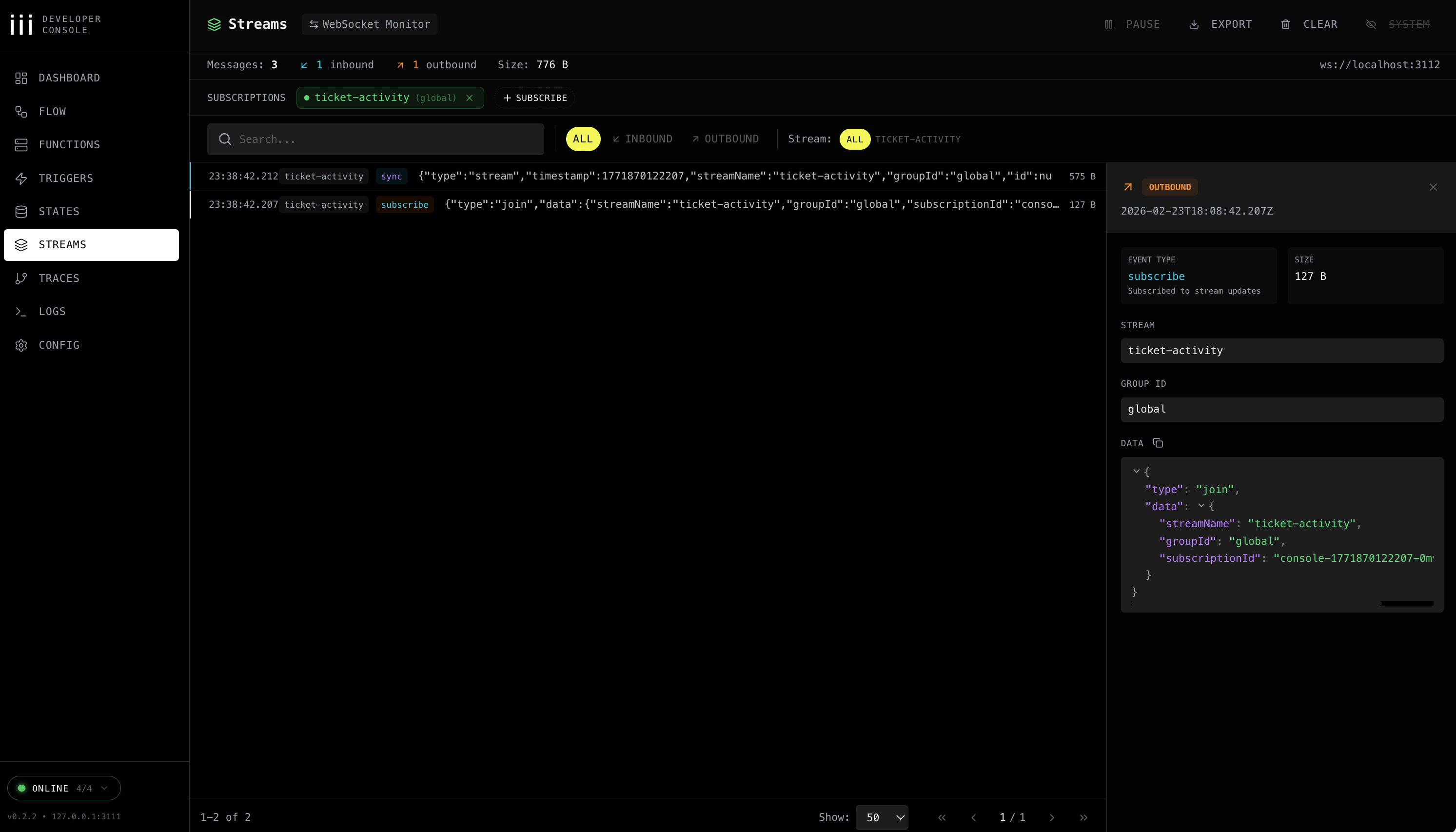

The Streams page is a live WebSocket monitor that captures messages flowing through the engine’s stream connections. It shows message counters (total, inbound, outbound, and buffer size), subscription management, and direction filter tabs.
| Column | Description |
|---|
| Name | The stream identifier |
| Group | The consumer group the stream belongs to |
| Type | Whether the stream is user-defined or system-internal |
Streams are provided by the Stream worker. Make sure iii-stream is included in your engine configuration. See Stream Worker for details. Queues
The Queues page lists durable queue topics, subscriber counts, queued message counts, in-flight work, retry counts, and dead-letter activity.
| Column | Description |
|---|
| Topic | Queue topic name |
| Subscribers | Functions subscribed to the topic |
| Messages | Messages waiting to be processed |
| In Flight | Messages currently being processed |
| Retries | Messages scheduled for retry |
| Dead Letters | Messages that exhausted retry handling |

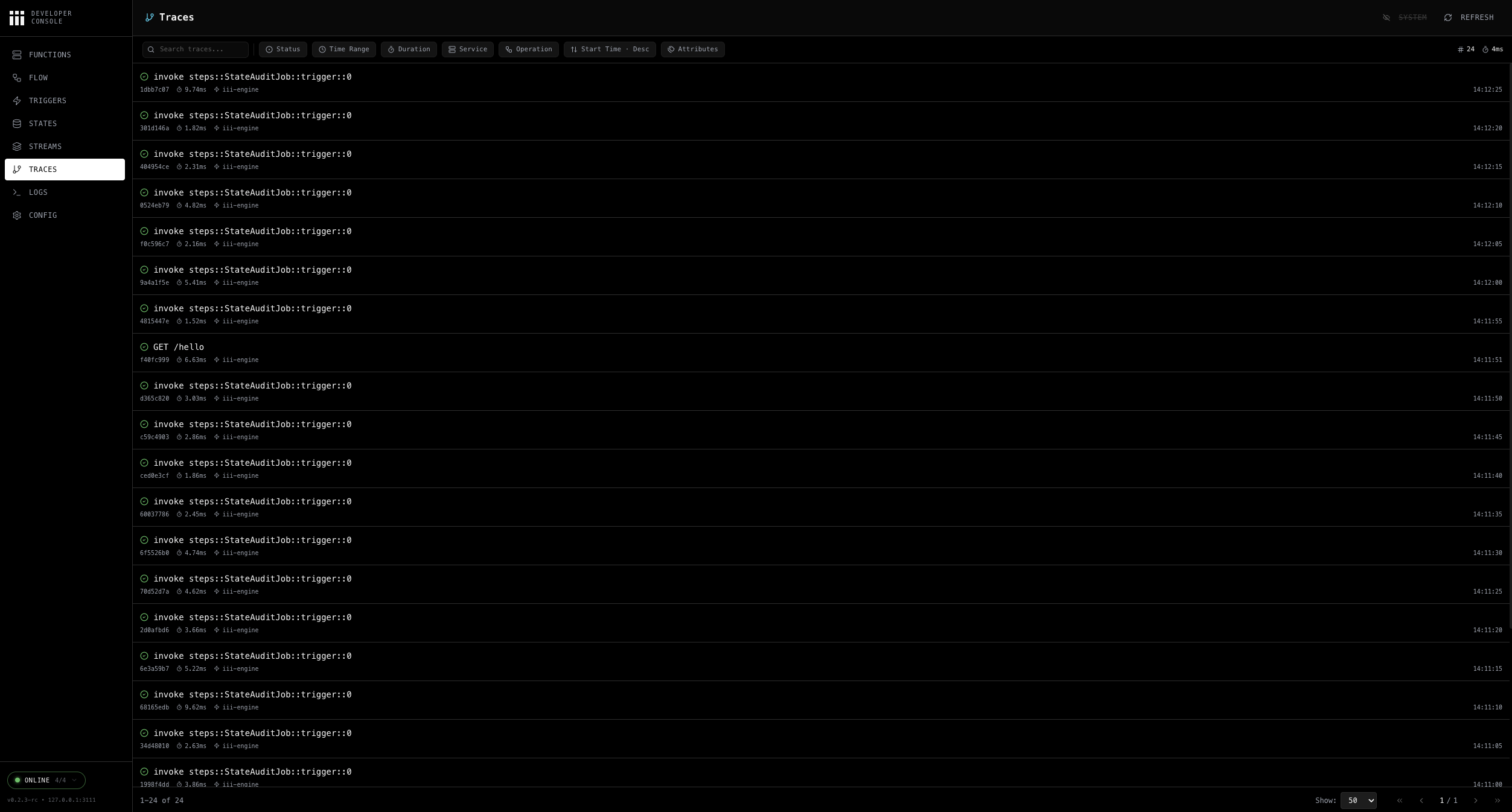

Traces
The Traces page provides full OpenTelemetry trace visualization with multiple view modes, advanced filtering, and detailed span inspection.
Trace collection requires the Observability worker with exporter set to memory or both. See Observability Worker for configuration. Trace List
| Column | Description |
|---|
| Trace ID | Unique identifier (click to expand) |
| Service | The service that produced the trace |
| Root Span | The top-level operation name |
| Duration | Total trace duration |
| Status | OK, Error, or Pending |
| Spans | Number of spans in the trace |
| Timestamp | When the trace started |
View Modes
Click on a trace to open the detail view with four visualization modes:

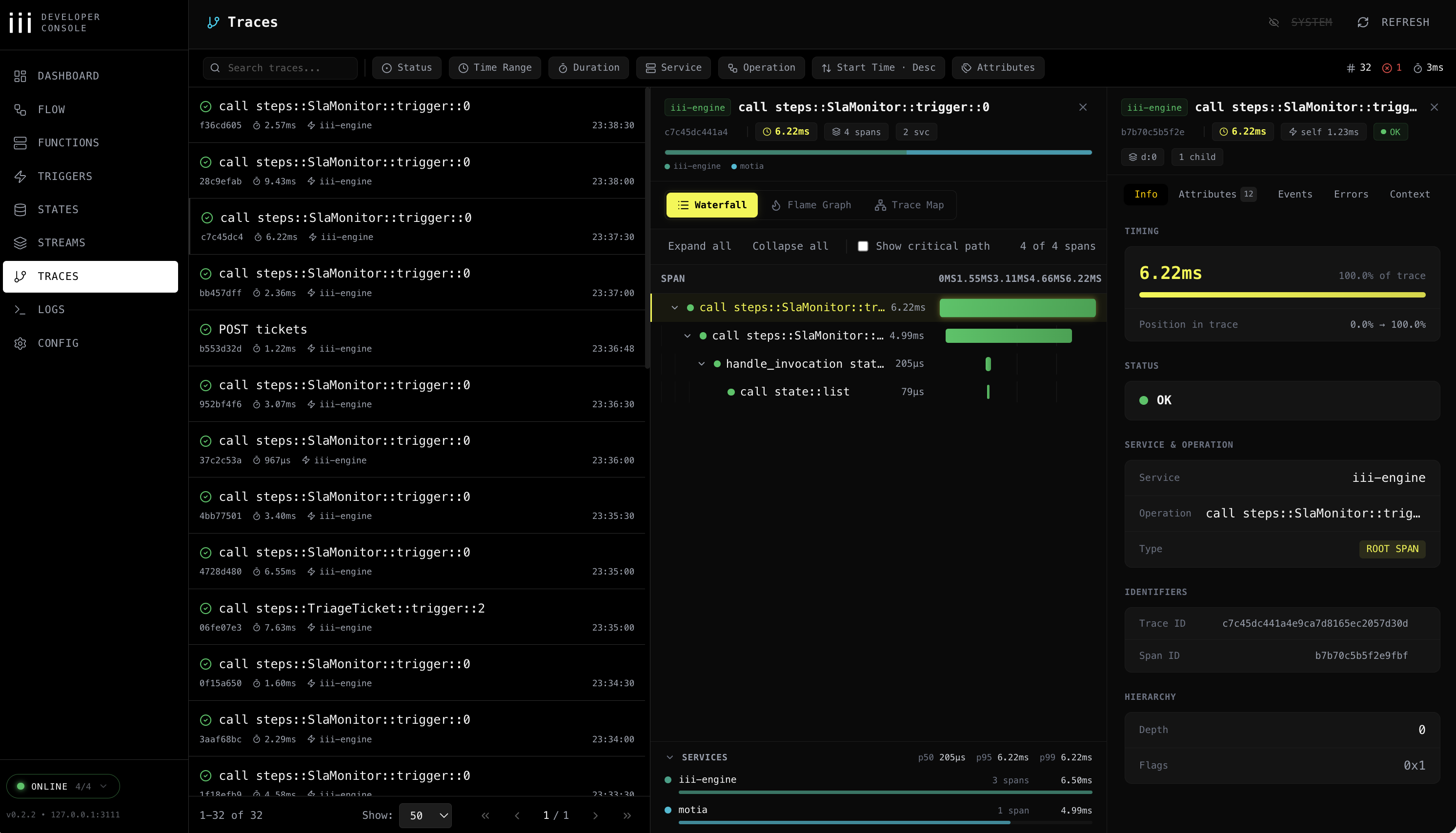

- Waterfall Chart — Timeline view showing every span laid out horizontally by start time and duration. This is the default view and is best for understanding the sequential and parallel flow of operations.
- Flame Graph — Stack-based visualization where each span is stacked on its parent. Wider bars indicate longer duration. Useful for identifying which operations consume the most time.
- Service Breakdown — Groups spans by service name with aggregate statistics: total spans, average duration, and error rate. Useful for identifying which service is the bottleneck.
- Trace Map — Topology graph showing how services communicate. Nodes represent services and edges represent span parent-child relationships across service boundaries. Useful for understanding distributed call patterns.
- Flow — Node-based execution flow showing parent-child span relationships in the selected trace.

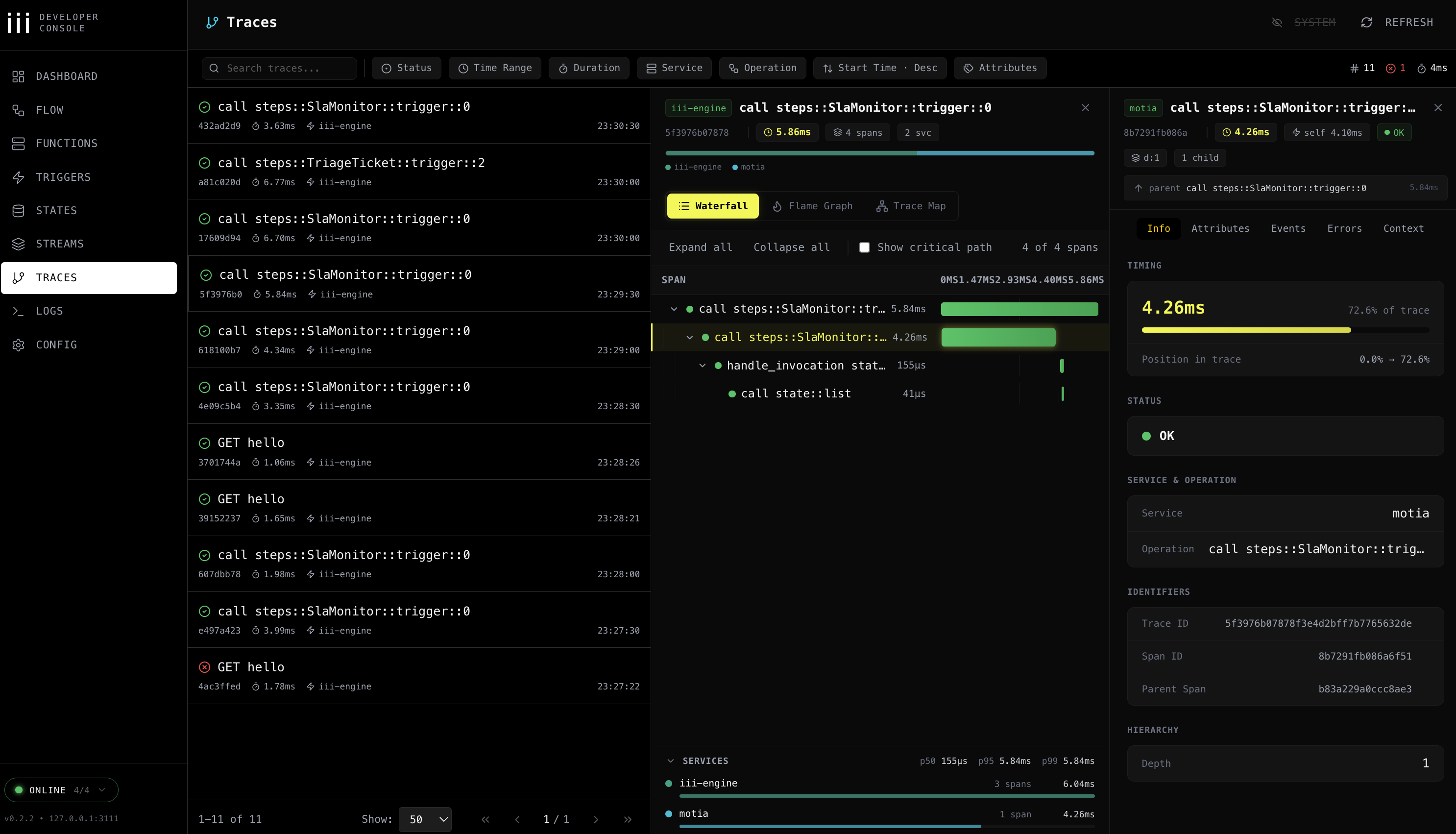

Span Details
Click on any span to open the detail panel:
| Tab | Content |
|---|
| Info | Span name, service, duration, status, trace/span IDs |
| Tags | All span attributes as key-value pairs |
| Logs | Events and log entries attached to the span |
| Errors | Error messages, stack traces, and exception details |
| Baggage | Trace context baggage key-value pairs |
Trace Filtering
| Filter | Description |
|---|
| Trace ID | Search by exact trace ID |
| Service Name | Filter by service name (substring match) |
| Span Name | Filter by span/operation name (substring match) |
| Status | Filter by status: OK, Error, or Pending |
| Duration | Min and max duration range in milliseconds |
| Time Range | Start and end time window |
| Attributes | Filter by span attributes as key-value pairs (AND logic) |

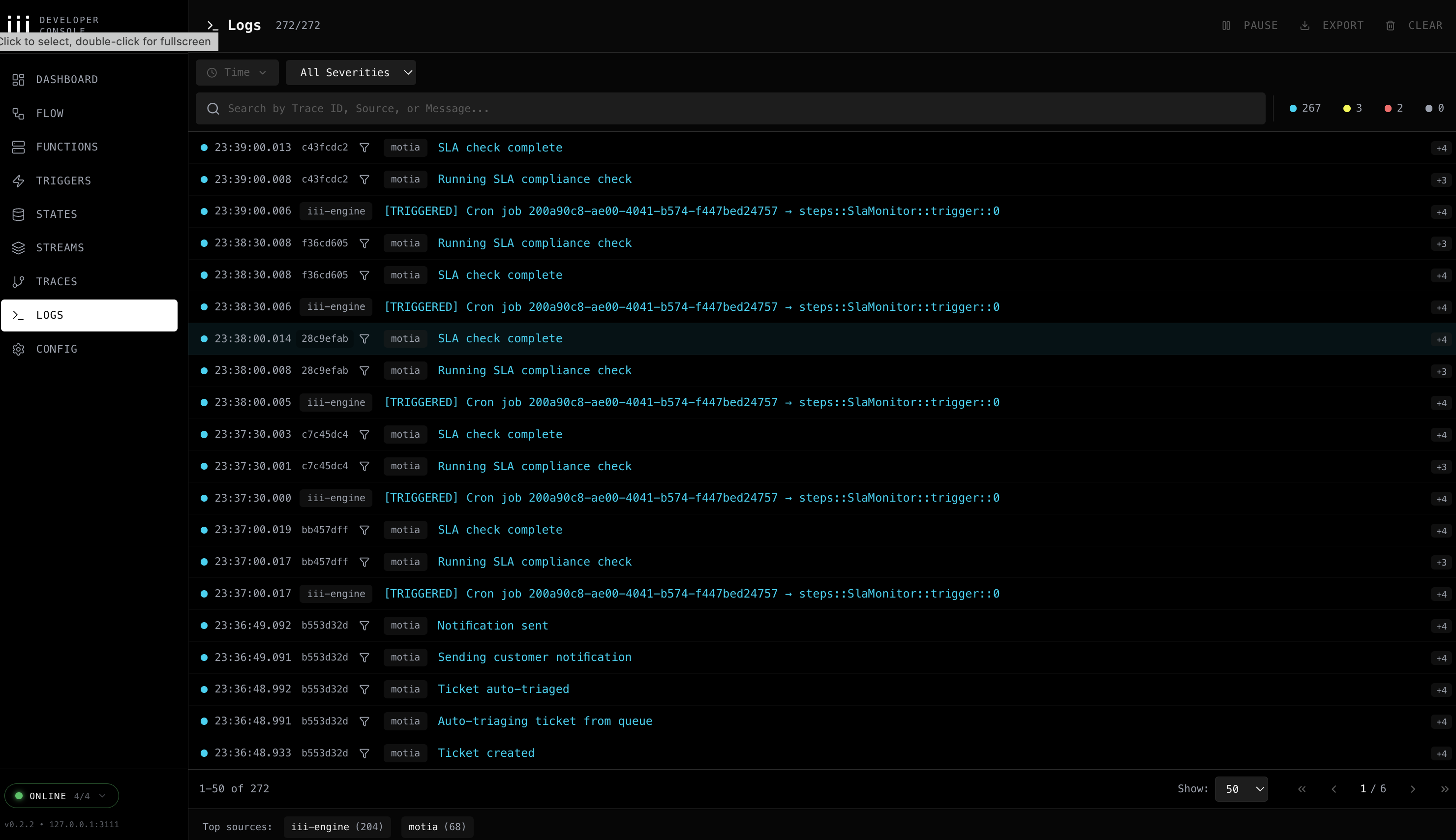

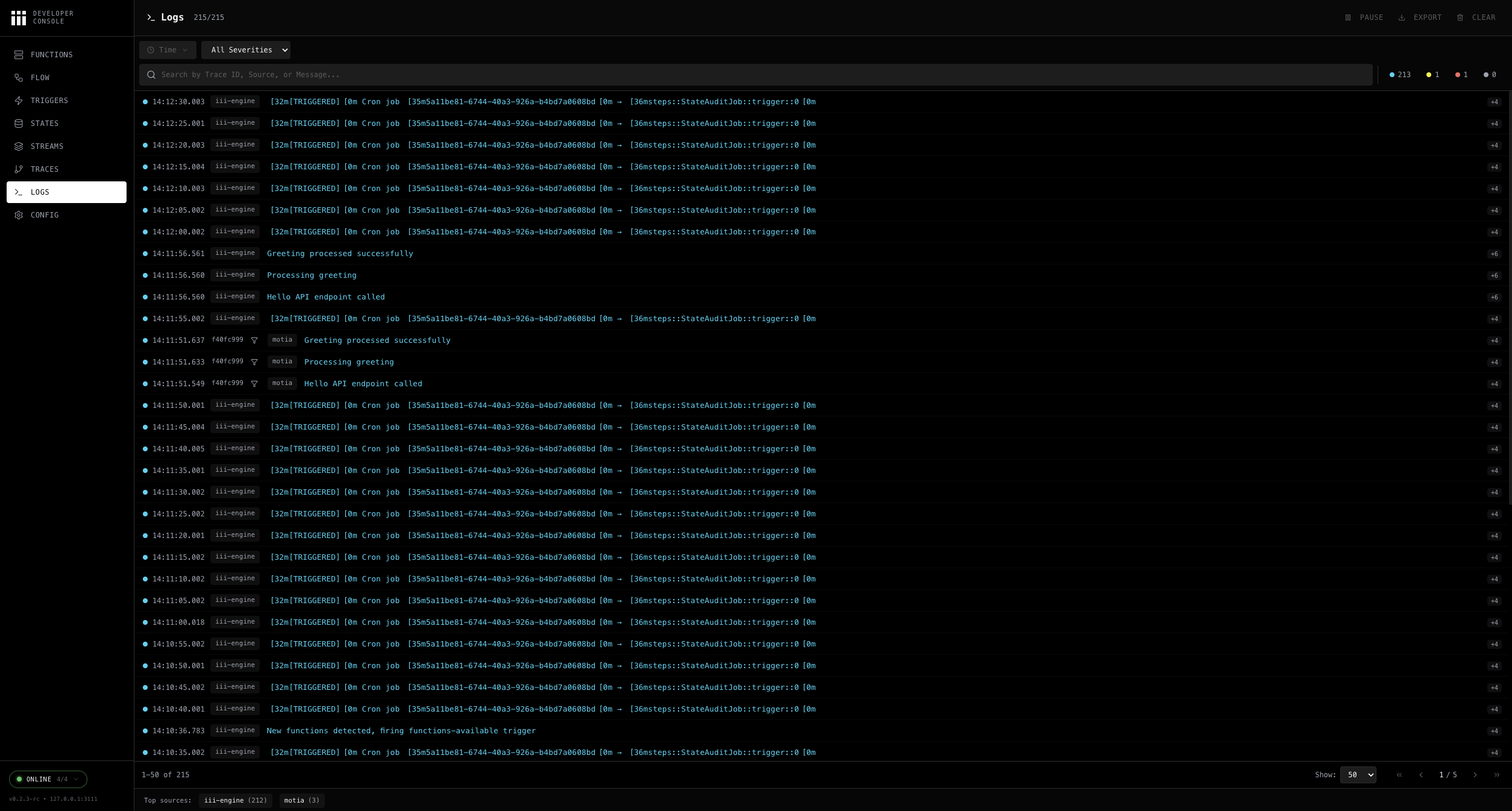

Logs
The Logs page provides a viewer for structured OpenTelemetry logs collected by the engine. Logs are displayed in reverse chronological order. Each entry shows a timestamp, severity level, service name, trace/span context, and message. A severity filter toggle, full-text search, and time-range controls let you zero in on specific log entries. The source breakdown at the bottom shows which services are contributing the most log volume.
Log collection requires the Observability worker with logs_enabled: true. See Observability Worker for configuration. Log Viewer
| Column | Description |
|---|
| Timestamp | When the log entry was produced |
| Severity | Log level: DEBUG, INFO, WARN, ERROR, TRACE |
| Service | The service that produced the log |
| Message | The log body/message content |
Log Filtering
| Filter | Description |
|---|
| Severity | Filter by one or more log levels |
| Time Range | Start and end time window |
| Text Search | Full-text search across log messages |
| Trace ID | Show only logs from a specific trace |

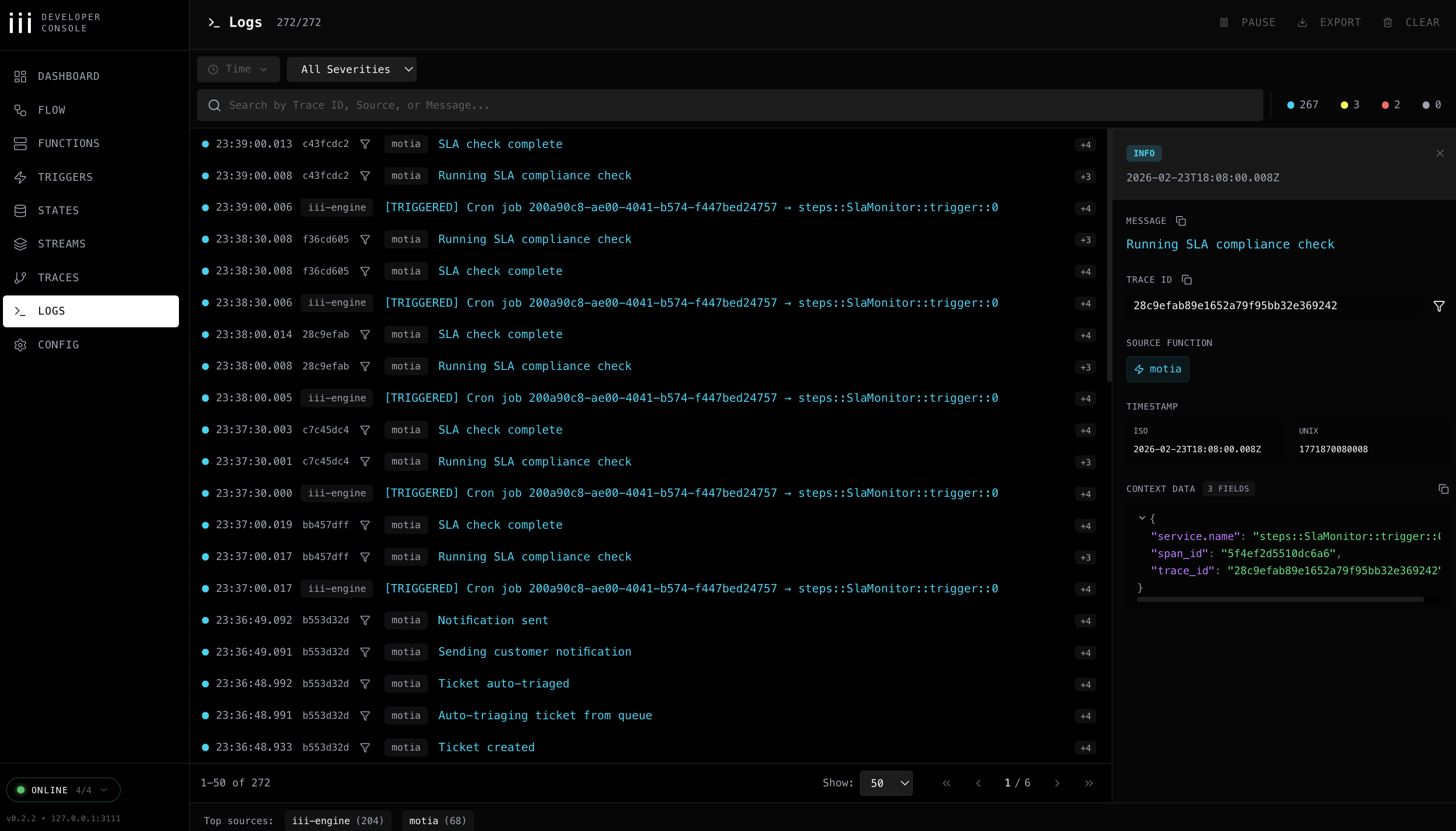

Log Entry Details
Each expanded log entry includes:
| Field | Type | Description |
|---|
timestamp_unix_nano | number | Timestamp of the log entry |
severity_text | string | Severity level: INFO, WARN, ERROR, DEBUG, or TRACE |
body | string | The log message content |
attributes | object | Structured attributes attached to the log entry |
trace_id | string | Distributed trace ID for correlating with traces |
span_id | string | Span ID within the trace |
service_name | string | Name of the service that produced the entry |
If a log entry has a trace_id, you can click it to jump directly to the corresponding trace in the Traces section above. Flow

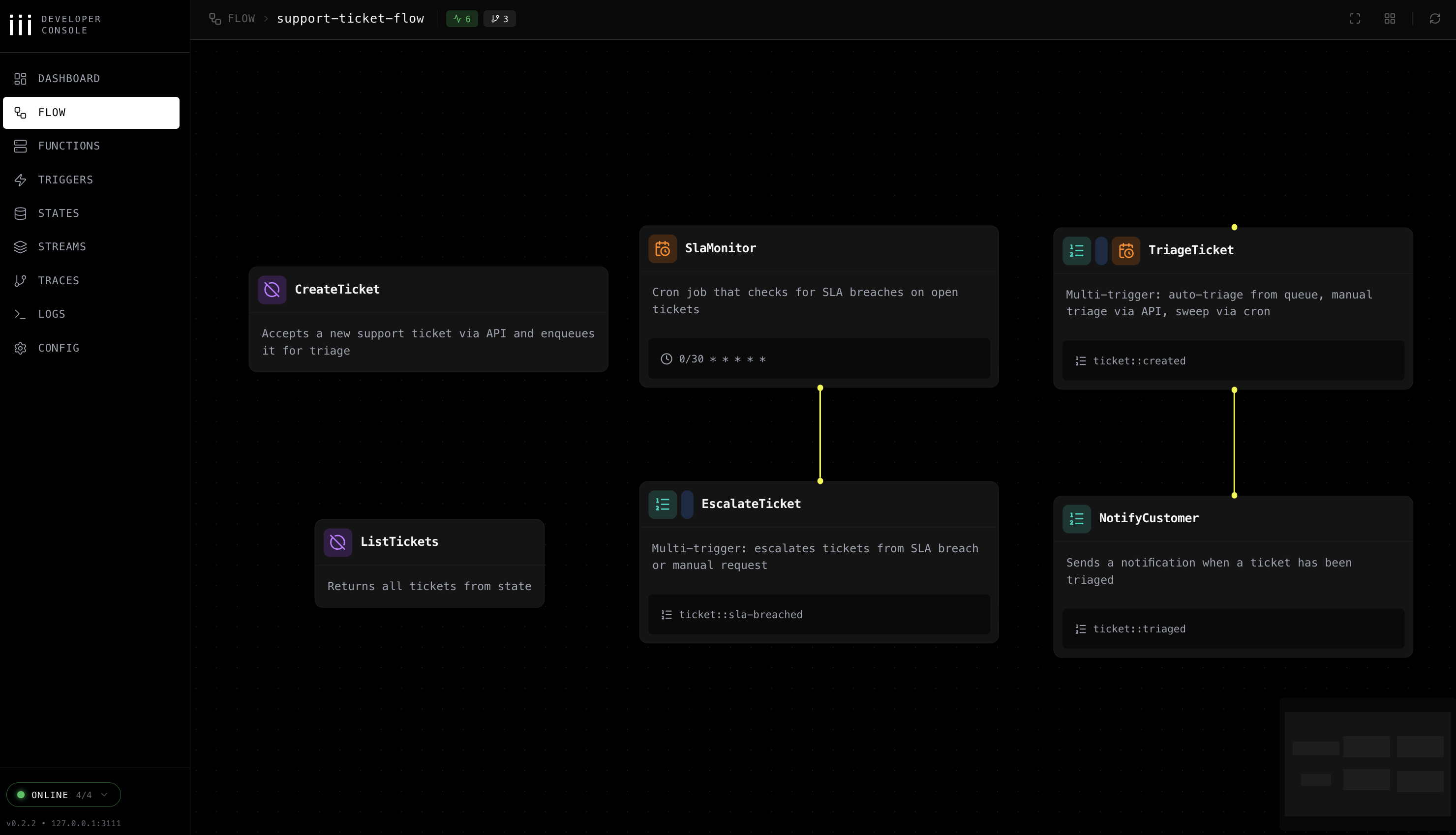

The Flow page renders an interactive graph of your system’s architecture, showing how triggers, functions, state stores, and queues connect.
The Flow page is an opt-in feature. Enable it by starting the console with the --enable-flow flag or setting the III_ENABLE_FLOW environment variable.
iii-console --enable-flow
| Node Type | Description | Visual |
|---|
| HTTP Trigger | HTTP endpoint triggers | Colored by method |
| Cron Trigger | Scheduled triggers | Clock icon |
| Event Trigger | Event-driven triggers | Lightning icon |
| Function | Registered functions | Code icon |
| State | Key-value state stores | Database icon |
| Queue | Queue nodes | List icon |
- Pan and zoom — scroll to zoom, drag to pan
- Click a node — view its details (function ID, trigger config, etc.)
- Auto-layout — the graph arranges itself automatically using a directed-graph layout
Layout configuration is saved to the engine’s state store and restored on next visit.
Configuration
The iii Console is configured via CLI flags and environment variables. All settings have sensible defaults for local development.
CLI Flags
| Flag | Default | Description |
|---|
--port, -p | 3113 | Port for the console web UI |
--host | 127.0.0.1 | Host address to bind the console to |
--engine-host | 127.0.0.1 | Host address of the iii engine |
--engine-port | 3111 | Port of the engine’s HTTP API |
--ws-port | 3112 | Port of the engine’s WebSocket server |
--bridge-port | 49134 | Port of the engine’s SDK bridge WebSocket |
--no-otel | false | Disable OpenTelemetry export |
--otel-service-name | iii-console | Service name for console’s own OTEL traces |
--enable-flow | false | Enable the Flow visualization page |
Environment Variables
| Variable | Equivalent Flag | Description |
|---|
OTEL_DISABLED | --no-otel | Disable OTEL export |
OTEL_SERVICE_NAME | --otel-service-name | OTEL service name |
III_ENABLE_FLOW | --enable-flow | Enable Flow visualization |
III_ISOLATION | — | Reported by the SDK as the worker’s isolation context in the Workers page. For libkrun workers, the libkrun launcher injects III_ISOLATION=libkrun into the VM boot environment. Set manually (III_ISOLATION=docker) for container/k8s deployments. |
Default Ports
| Service | Port | Description |
|---|
| iii Engine HTTP API | 3111 | Engine HTTP API |
| iii Engine WebSocket | 3112 | Engine real-time updates |
| iii Console UI | 3113 | Console web interface |
| iii SDK Bridge | 49134 | SDK bridge WebSocket connection |
Examples
iii-console
iii-console --engine-host 192.168.1.50 --engine-port 3111 --ws-port 3112
iii-console --port 8080
iii-console --enable-flow --otel-service-name my-console
